1-6x24mm FFP LPVO

Home / Products / Communication & Optics / Communication & Optics / 1-6x24mm FFP LPVO

1-6x24mm FFP LPVO

The LPVO provides a rugged and versatile solution for a variety of sighting requirements in variable magnification. LPVO are designed for brilliant optical performance in rugged environments.

Get Quote

Features

- LED-illuminated First Focal Plane Reticle

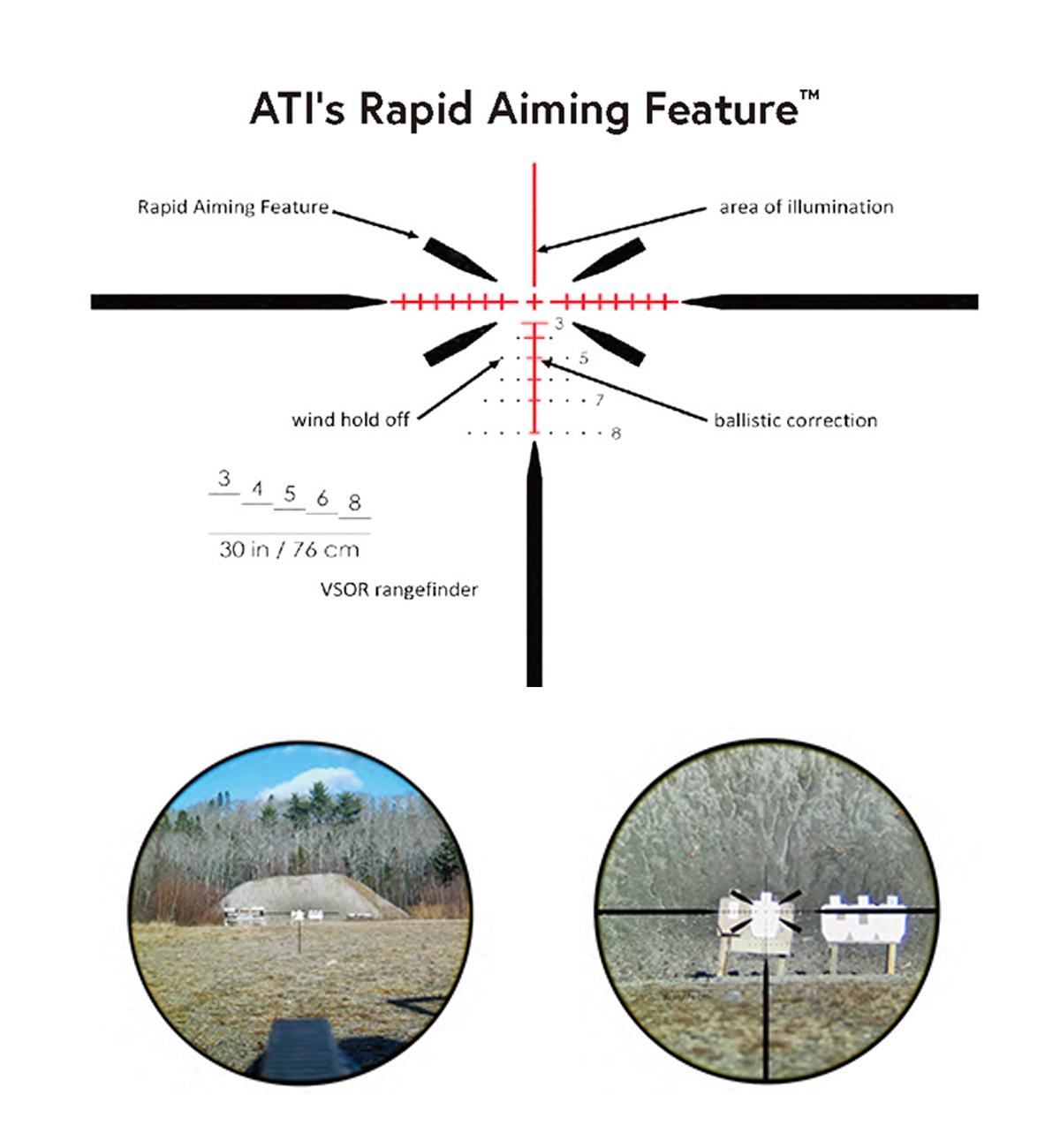

- Proprietary Rapid Aiming Feature™ Reticle
- Accommodates Advanced Optical Enhancements

SPEC

- Magnification： 1 - 6x
- Tube diameter：30mm
- Focal Plane：First Focal Plane
- Field of View：22.0° to 3.7°(38.8m - 6.5m @ 100m)
- Eye relief：90mm nominal
- Weight：510g
- Elevation/Windage range：35 mrad (120 MoA)
- Adjustment resolution：0.1 mrad
- Crosshair illumination：LED, 9 settings
- Zero adjustments：Finger adjustable,10 mrad / rev
- Adjustment protection：Protected with retained cap
- Reticle：CX9001 / CX9002 with Rapid Aiming Feature™
- Ballistic calibration：5.56 or 7.62 NATO to 800m
- Rangefinder：VSOR Rangefinder, 300-800m
- Operating temperature：-40 C to +50 C
- Standard accessories：
  Tenebraex®︎ KillFlash®︎ ARD
  Tenebraex®︎ Tactical Tough™ flip covers
Adjustment cap retaining lanyard
  Optional features：Tenebraex®︎ laser filter
Tenebraex®︎ adjustable polarizer
